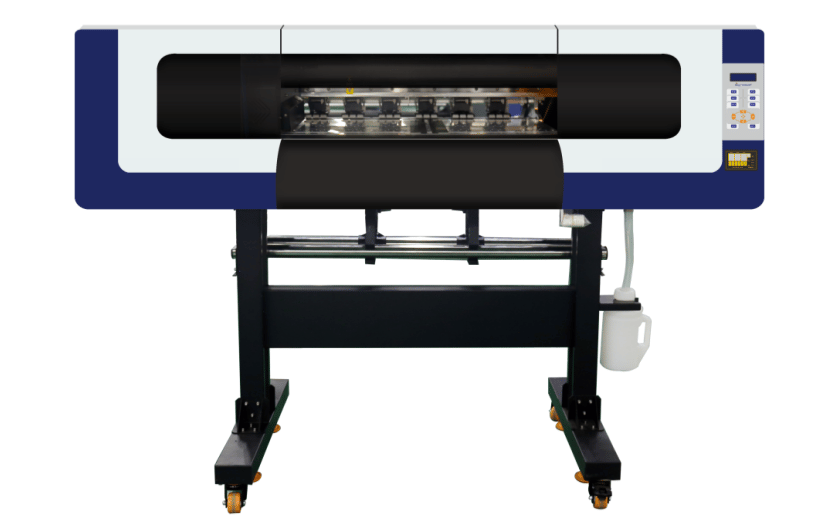

60cm DTF Printer
4 Print Heads Direct to Film Printer
Printhead: 4*EPSON I3200-A1
Printhead Resolution: 3200DPI
Printing Speed: 4pass 22㎡/h 6pass 14㎡/h 8pass 10㎡/h
Print Width: 600mm
Ink: Pigment Ink
Ink Color: CMYK+W
RIP Software: Maintop, Photoprint, Flexiprint
Printhead Resolution: 3200DPI
Printing Speed: 4pass 22㎡/h 6pass 14㎡/h 8pass 10㎡/h
Print Width: 600mm
Ink: Pigment Ink
Ink Color: CMYK+W
RIP Software: Maintop, Photoprint, Flexiprint
Fedar FD70-4 DTF Printer Specifications
| Printer Model | Fedar FD70-3 DTF Printer |
| Printhead | 3*EPSON I3200-A1 3200DPI |
| Printing Speed Tested on linear print without feather |
4pass 22㎡/h 6pass 14㎡/h 8pass 10㎡/h |
| Printing Width | 600mm |
| Ink | CMYK+LC LM 2 FLUO./4 FLUO.+W Pigment Ink |
| Print Media | PET Film |
| Heating System | Front and Back Independent Heater |
| Transmission Interface | Gigabit LAN |
| RIP Software | Maintop, Photoprint |
| Image Format | BMP, JPG, TIFF, EPS, PDF… |
| Computer System | Windows XP/Win7/Win8/Win10 |
| Power Supply | 220V, 50/60 HZ, 10A |
| Work Environment | TEMP.:18℃-30℃ Humidity:35%-65% |
| Machine Size/Weight | 1865*676*1480mm |
