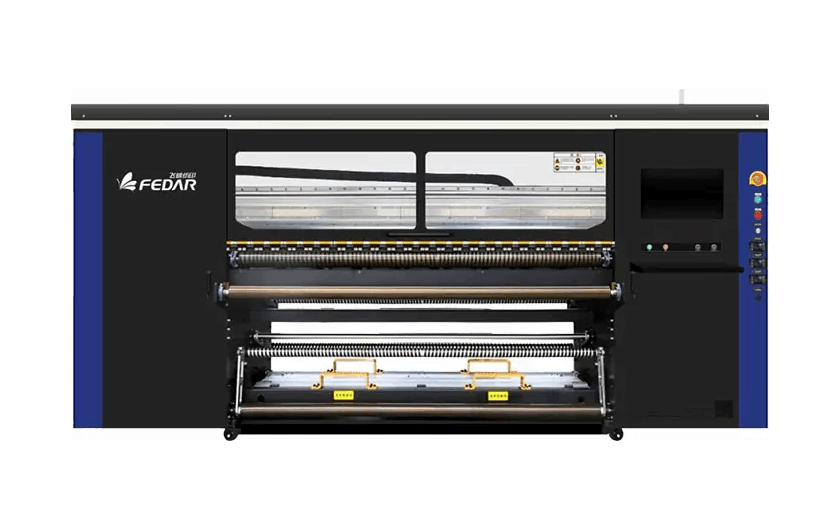

Sublimation Printer
Printer Head: 16*EPSON I3200-A1
Printer Resolution: 360*1200DPI 1PASS 670m²/h
360*2400DPI 2PASS 330m²/h
Printer Width: 1900mm
Printer Ink: Dye Sublimation Ink,Pigment Ink
Printer Media: Transfer Paper ,Poster Paper
RIP Software: Maintop, FlexiPRINT, ONYX, Neostampa and etc.
Printer Resolution: 360*1200DPI 1PASS 670m²/h
360*2400DPI 2PASS 330m²/h
Printer Width: 1900mm
Printer Ink: Dye Sublimation Ink,Pigment Ink
Printer Media: Transfer Paper ,Poster Paper
RIP Software: Maintop, FlexiPRINT, ONYX, Neostampa and etc.
Specification
| Printer Model | FD61916E | |
| Printhead | Type | EPSON I3200-A1 |
| Nozzle Qty | 16pcs printheads | |
| Height to Platform | 2-5mm | |
| Printing Speed | 1pass 670sqm/h | |
| 2pass 330sqm/h | ||
| Ink | Color | C M Y K |
| Type | Dye Sublimation | |
| supply method | Siphoning | |
| Max Printing Width | 1900mm | |
| Printing Media | Transfer Paper | |
| Media Transfer Method | Auto air shaft feeding and take-up system | |
| Feeding Method | Roll to Roll, Leaf | |
| Heating System | Extra Front Heating System | |
| RIP Software | Maintop, Flexiprint, Neostampa | |
| Image Format | BMP, TIF, JPG, PDF Etc. | |
| Computer | System | WIN7 64bit/WIN10 64bit |
| Hardware | Hard Disk: NTFS, C Disk Space: More than 100G HARD Disk: WG500G GPU: ATI Discrete GPU CD-ROM:DVD ROM CPU: Intel i5/i7,Gigabit LAN |
|
| Transmit Port | Gigabit LAN | |
| Work Environment | Temperature:15°C-30℃, Humidity:35%-65% | |
| Power | Input Voltage | 210-230V, 50/60HZ,16A |
| Printing system | 9.5KW | |
| Drying system | Max. power 14.4KW | |
| Dimension | Printer Dimension | 3860*2070*2230mm |
| Packing Dimension | 4020*1150*2230mm | |
| Color Management | ICC Based | Density & Curves Adjustable |
*”Shown pictures can vary from original product, technical specifications & designs are subject to change without prior notice.
