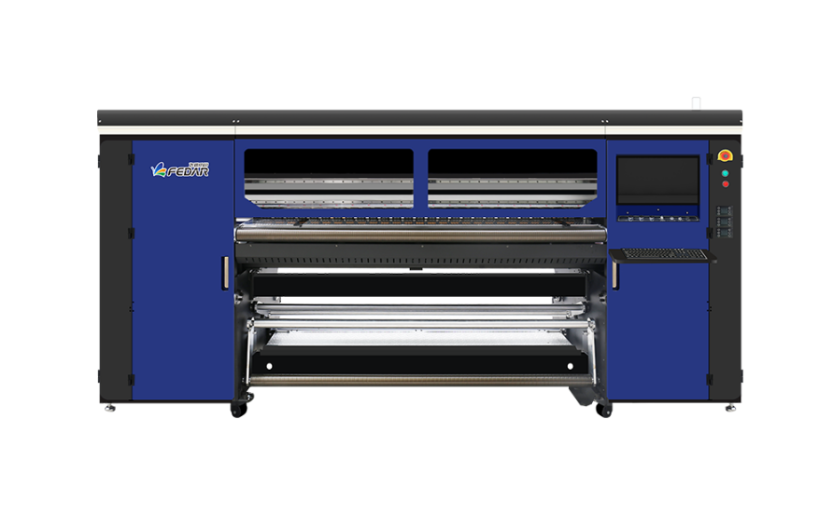

8 Heads & 1.9 m FD6198E-A

Dye Sublimation Textile Printer

Print Head: 8*EPSON I3200-A1 Printhead
Printhead Resolution: 3200DPI
Printing Speed: 370㎡/h
Print Width: 1900mm
Ink: Dye Sublimation Ink, Pigment Ink
Media: Transfer Paper, Poster Paper
RIP Software: Maintop, Photoprint, Neostampa, Onyx, etc.

Main Features

EPSON I3200-A1 Printhead

EPSON 3200-A1 print head has 3200 nozzles, variable drop ink technology, improved printing resolution, improved color restoration degree, built-in ink column, easy to use, and supports up to four levels of gray printing.

Imported THK Mute Guide Rail

Japanese THK mute guide rail, moving steadily, longer working life, and reducing the resistance and noise of carriage moving during the highspeed printing.

Rubber Roller

Specially designed paper transmission roller, which is for thin paper printing,20-30g paper can be printed perfectly without a wrinkle.

Smart Moisturizing Capping Station

Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

Printer Details

Ink cartridge

This Fedar FD6198E-A Sublimation Printer adopts 8 liters of bulk tanks with an ink-starving alarm system to make sure of a good print job. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back-and-forth inspection.

Capping Station

Finished integrated capping station equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

Pinch Rollers

This Fedar Sublimation Printer has a specially designed pinch roller made of Dupont rubber, each roller can be lifted independently to eliminate the wrinkle caused by media moving.

Feeding & Take-up System

This auto-feeding and taking-up device with a tension sensor bar makes the force even and makes the paper smoother. It’s simple and convenient to take up printed media.
