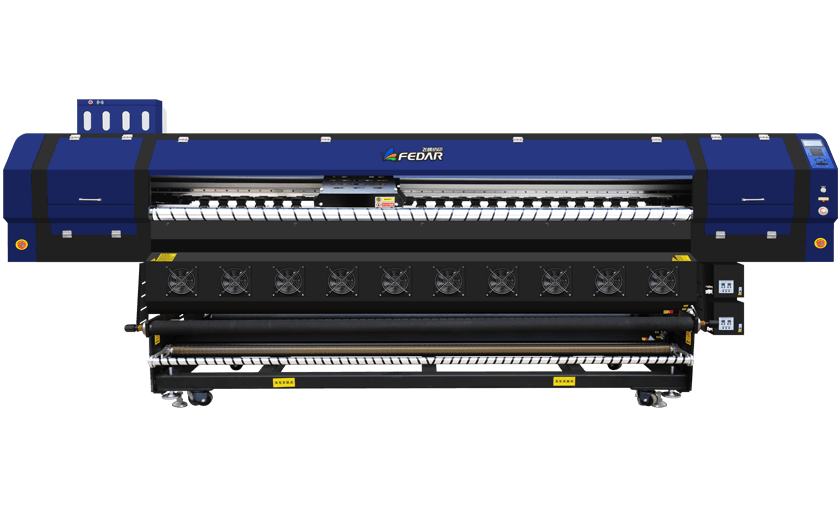

Sublimation Textile Printer
Printhead: 8*EPSON I3200-A1
Printhead Resolution: 3200DPI
Printing Speed: 420sqm/h
Print Width: 3200mm
Ink: Dye Sublimation Ink,Pigment Ink
Media: Transfer Paper ,Poster Paper
RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.
Printhead Resolution: 3200DPI
Printing Speed: 420sqm/h
Print Width: 3200mm
Ink: Dye Sublimation Ink,Pigment Ink
Media: Transfer Paper ,Poster Paper
RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.
Main Features
-
Original Epson I3200-A1 Printheads
8 Epson I3200-A1 printheads to ensure continuous ink supply and reduce costs.
-
Fully Enclosed Capping Station
Long-lasting moisturizing, automatic cleaning, cleaner and simpler printing.
-
4.5L High-capacity Ink Cartridges
Matched with secondary ink cartridges, to provide guarantee for long-term continuous operation of printer.
-
Intelligent Ink Starving Alarm
Reducing cumbersomeness of frequently checking remaining amount of ink, and adding ink in time.
Printer Details
-
01High Quality Servo Motor400W motor, greater driving force, faster speed and more stable operation. -
02Anti-collision CarPrinthead position can be adjusted according to different printing materials. -
03Synchronous WheelEnsures uniform stepping accuracy and smaller errors. -
04Feeding and Take-up SystemLarge loading weight, long service life, uniform loading and unwinding of paper. -
05THK Mute Guide RailUsing Japanese THK mute linear guide rail, the movement is more stable and the life is longer. -
06Japanese NSK BearingsHigh quality, fully guarantee the accuracy of the printer and the stability of long-term work. -
07German IGUS Ink ChainImported Germany IGUS ink chain,high quality, to ensure the good completion of printing work. -
08Fluororubber Pressure RollerPaper feeding is smooth, no wrinkles, static electricity prevention, no ink flying, more accurate printing size.
Specification
| Printer Model | FD5328E | |
| Printhead | Type | EPSON I3200-A1 |
| Nozzle Qty | 8pcs printheads | |
| Height to Platform | 2-5mm | |
| Printing Speed | 1pass 420sqm/h | |
| 2pass 210sqm/h | ||
| Ink | Color | C M Y K |
| Type | Dye Sublimation | |
| Supply Method | Siphoning | |
| Max Printing Width | 3200mm | |
| Printing Media | Transfer Paper | |
| Media Transfer Method | Auto air shaft feeding and take-up system | |
| Drying Method | External,Intelligent and air-heat Integrated drying system | |
| Moisture Mode | Fully sealed auto moisturing and cleaning | |
| RIP Software | Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc. | |
| Image Format | JPG,TIF,PDF,BMP and etc. | |
| Computer | System | WIN7 64bit/WIN10 64bit |
| Hardware | Hard disk:500G or more GPU:ATI Mobility Memory:4G Random Access Memory:8G CPU:Intel i7 processor or above |
|
| Transmit Port | Gigabit LAN | |
| Work Environment | Temperature 18-30℃; Humidity 35%-65% | |
| Power | Input Voltage | 210-230VAC 50/60HZ 16A |
| Printing system | 1500W | |
| Drying system | Max 10800W | |
| Dimension | Printer Dimension | 5760*1450*1850mm |
| Packing Dimension | 5280*1180*1770mm | |
*”Shown pictures can vary from original product, technical specifications & designs are subject to change without prior notice.
